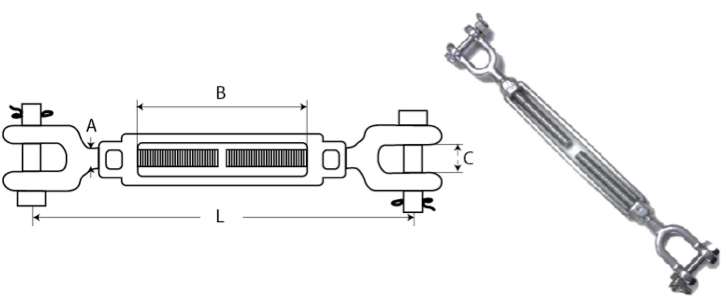

| Jaw & Jaw Turnbuckles | ||||||||||||
| Drop Forged, Hot Dipped Galvanized | ||||||||||||
| Thread Dia & Take Up |
Working Load (in) |
Weight Per Piece in LBS |
Dimensions (in) | Part No. | ||||||||
| A | B Closed |
E | G Open |
J Closed |
K Open |
M Closed |
N | BB | ||||
| 1/4×4 | 500 | 0.36 | 0.25 | 0.45 | 1.58 | 0.62 | 10.9 | 6.9 | 11.9 | 7.9 | 4 | HG14X4JJ |
| 5/16×4-1/2 | 800 | 0.52 | 0.31 | 0.5 | 1.98 | 0.87 | 12.36 | 8.36 | 13.9 | 9.4 | 4.5 | HG516X412JJ |
| 3/8×6 | 1200 | 0.81 | 0.38 | 0.54 | 2.12 | 0.87 | 16.14 | 10.14 | 17.38 | 11.38 | 6 | HG38X6JJ |
| 1/2×6 | 2200 | 1.5 | 0.5 | 0.68 | 2.75 | 1.06 | 17.5 | 11.5 | 19 | 13 | 6 | HG12X6JJ |
| 1/2X9 | 2200 | 1.74 | 0.5 | 0.68 | 2.75 | 1.06 | 23.5 | 14.5 | 25 | 16 | 9 | HG12X9JJ |
| 1/2×12 | 2200 | 2.4 | 0.5 | 0.68 | 2.75 | 1.06 | 29.5 | 17.5 | 31 | 19 | 12 | HG12X12JJ |
| 5/8×6 | 3500 | 2.72 | 0.63 | 0.82 | 3.5 | 1.31 | 18.8 | 12.8 | 20.88 | 14.88 | 6 | HG58X6JJ |
| 5/8X9 | 3500 | 3.24 | 0.63 | 0.82 | 3.5 | 1.31 | 24.8 | 15.8 | 26.88 | 17.88 | 9 | HG58X9JJ |
| 5/8×12 | 3500 | 3.74 | 0.63 | 0.82 | 3.5 | 1.31 | 30.8 | 18.8 | 32.88 | 20.88 | 12 | HG58X12JJ |
| 3/4×6 | 5200 | 4.11 | 0.75 | 1.03 | 4.18 | 1.5 | 20 | 14 | 22.6 | 16.6 | 6 | HG34X6JJ |
| 3/4X9 | 5200 | 5.1 | 0.75 | 1.03 | 4.18 | 1.5 | 26 | 17 | 28.6 | 19.6 | 9 | HG34X9JJ |
| 3/4×12 | 5200 | 5.65 | 0.75 | 1.03 | 4.18 | 1.5 | 32 | 20 | 34.6 | 22.6 | 12 | HG34X12JJ |
| 3/4×18 | 5200 | 7 | 0.75 | 1.03 | 4.18 | 1.5 | 44 | 26 | 46.6 | 28.6 | 18 | HG34X18JJ |
| 7/8×12 | 7200 | 8.17 | 0.88 | 1.23 | 4.85 | 1.75 | 33.36 | 21.36 | 36.32 | 24.32 | 12 | HG78X12JJ |
| 7/8X18 | 7200 | 9.96 | 0.88 | 1.23 | 4.85 | 1.75 | 45.36 | 27.36 | 48.32 | 30.32 | 18 | HG78X18JJ |
| 1X6 | 10000 | 8.5 | 1 | 1.31 | 5.53 | 2.06 | 22.72 | 16.72 | 26.06 | 20.06 | 6 | HG1X6JJ |
| 1×12 | 10000 | 12 | 1 | 1.31 | 5.53 | 2.06 | 34.72 | 22.72 | 38.06 | 26.06 | 12 | HG1X12JJ |
| 1X18 | 10000 | 14 | 1 | 1.31 | 5.53 | 2.06 | 46.72 | 28.72 | 50.06 | 32.06 | 18 | HG1X18JJ |
| 1X24 | 10000 | 17 | 1 | 1.31 | 5.53 | 2.06 | 58.72 | 34.72 | 62.06 | 38.06 | 24 | HG1X24JJ |
| 1-1/4X12 | 15200 | 21.5 | 1.25 | 1.86 | 7.21 | 2.81 | 37.34 | 25.34 | 41.54 | 29.54 | 12 | HG114X12JJ |
| 1-1/4×18 | 15200 | 24.25 | 1.25 | 1.86 | 7.21 | 2.81 | 49.34 | 31.34 | 53.54 | 35.54 | 18 | HG114X18JJ |
| 1-1/4×24 | 15200 | 28 | 1.25 | 1.86 | 7.21 | 2.81 | 61.34 | 37.34 | 65.54 | 41.54 | 24 | HG114X24JJ |
| 1-1/2×12 | 21400 | 30.5 | 1.5 | 2.25 | 7.88 | 2.81 | 38.5 | 26.5 | 43.5 | 31.5 | 12 | HG12X12JJ |
| 1-1/2×18 | 21400 | 36.75 | 1.5 | 2.25 | 7.88 | 2.81 | 50.5 | 32.5 | 55.5 | 37.5 | 18 | HG12X18JJ |
| 1-1/2×24 | 21400 | 40.67 | 1.5 | 2.25 | 7.88 | 2.81 | 62.5 | 38.5 | 67.5 | 43.5 | 24 | HG112X24JJ |
| 1-3/4×18 | 28000 | 55.04 | 1.75 | 2.6 | 9.4 | 3.38 | 53.38 | 35.38 | 59.18 | 41.18 | 18 | HG134X18JJ |
| 1- 3/4×24 | 28000 | 63.36 | 1.75 | 2.6 | 9.4 | 3.38 | 65.38 | 41.38 | 71.18 | 47.18 | 24 | HG134X24JJ |
| 2×24 | 37000 | 94.25 | 2 | 2.62 | 11.86 | 3.69 | 69.54 | 45.54 | 76.72 | 52.72 | 24 | HG2X24JJ |
| 2-1/2×24 | HG212X24JJ | |||||||||||
